Products
The following are in stock at this time.
If you need help sizing the correct charger to use with your system, or don't have a system yet and would like to learn more, feel free to ask.
Solar Panels

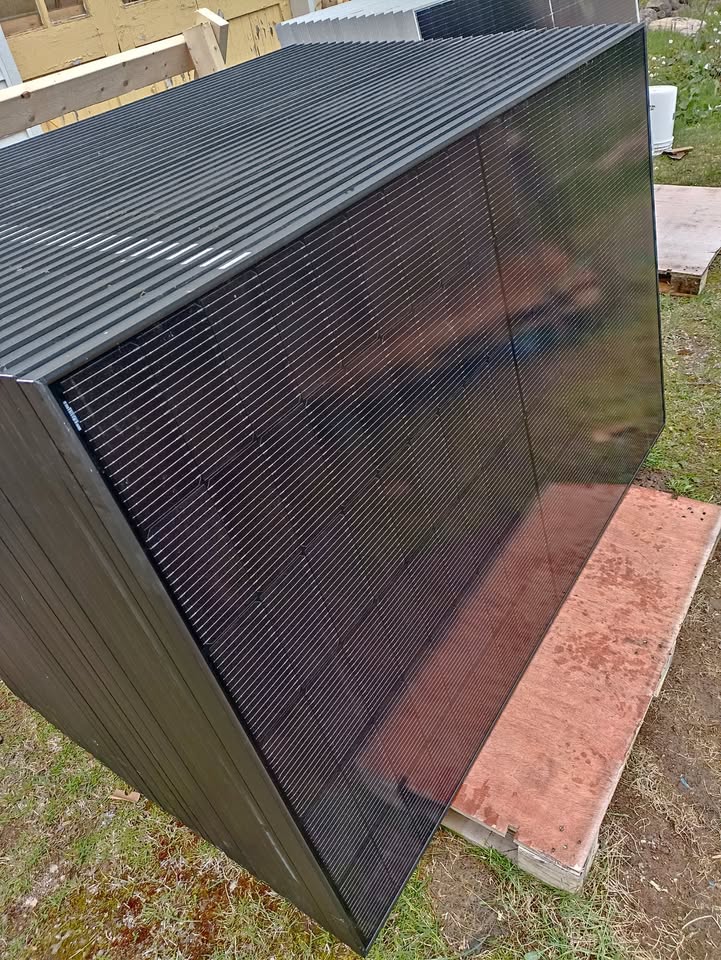

New 440w Solar Panels
-
JA Solar n-type bifacial solar panels
- 38.90 Voc, 32.47 Vmp, 13.55 Imp (not including bifacial gain)
- 44 1/2" x 69 3/8" x 1 3/16" (30 mm)
- Manufacturer's specs
- Fall Clearance $200 (reg $240), No tax
|
|
Solar Kits

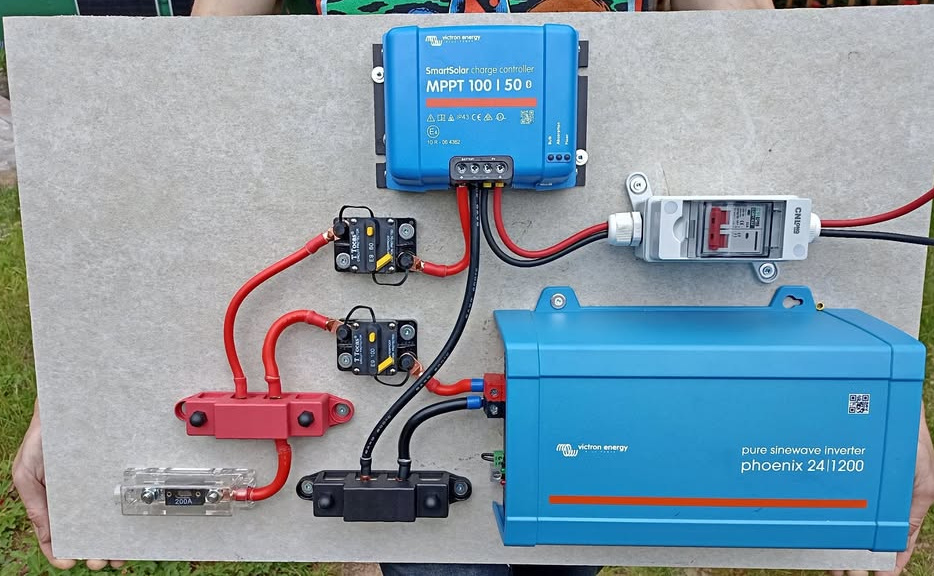

Complete Solar system for Off-Grid Camp/Cabin
- Fall Clearance $5,000

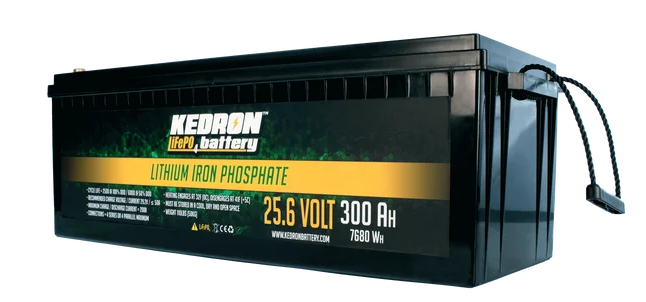

- The price includes 7.5kwh Kedron battery (25.6v 300AH) and 4x 440w (1760w) solar panels (see above), as well as me coming out for the day to help with installation. (travel fees might apply if it's outside of southern NB)
- This is a 24v heavy duty entry-level solar system for your off-grid camp, cabin or cottage.
- 1200w LF Victron Inverter.
- This system is meant for lights, fridge, freezer, TV, portable coffee maker (6-7 amp, not a standard 15amp) maybe small window AC unit (6-7 amp). Not meant for well pump, toaster or microwave.
- Assembled with the heaviest fine-stranded wire accepted by the device terminals, with DC runs as short as possible. Plywood backing with Hardibacker 500 cement board mounting surface.
- **if you do not have appropriate south facing roof space for mounting 4 panels, we can discuss other mounting/racking options, but the price would adjust accordingly.
|
Solar Accessories
Accessories
- Z-brackets ($20/set)
- #10 PV wire ($1.50/ft)
- MC4 connectors ($2/pair)
- Ferrules for awg 4/6/10 wire (25c/ea for #6/#10, 50c/ea for #4)
- PV wall entry glands ($20/ea)
- MC4 Y-connectors ($20/pair)
- 1/4" & 5/16" lugs for awg 4/6 wire ($2.50/ea)
- 200a ANL fuses + holder ($20/set)
- NB* Prices may change without notice depending on costs
|
